Intended Use

The EAGLE ARTEK is a microwave sensor that can be installed on all types of automatic doors, regardless of the environment. Slim and compact, it is designed to fit the most discreet door operating systems. It offers one-way opening and optimises door opening and closing cycles.

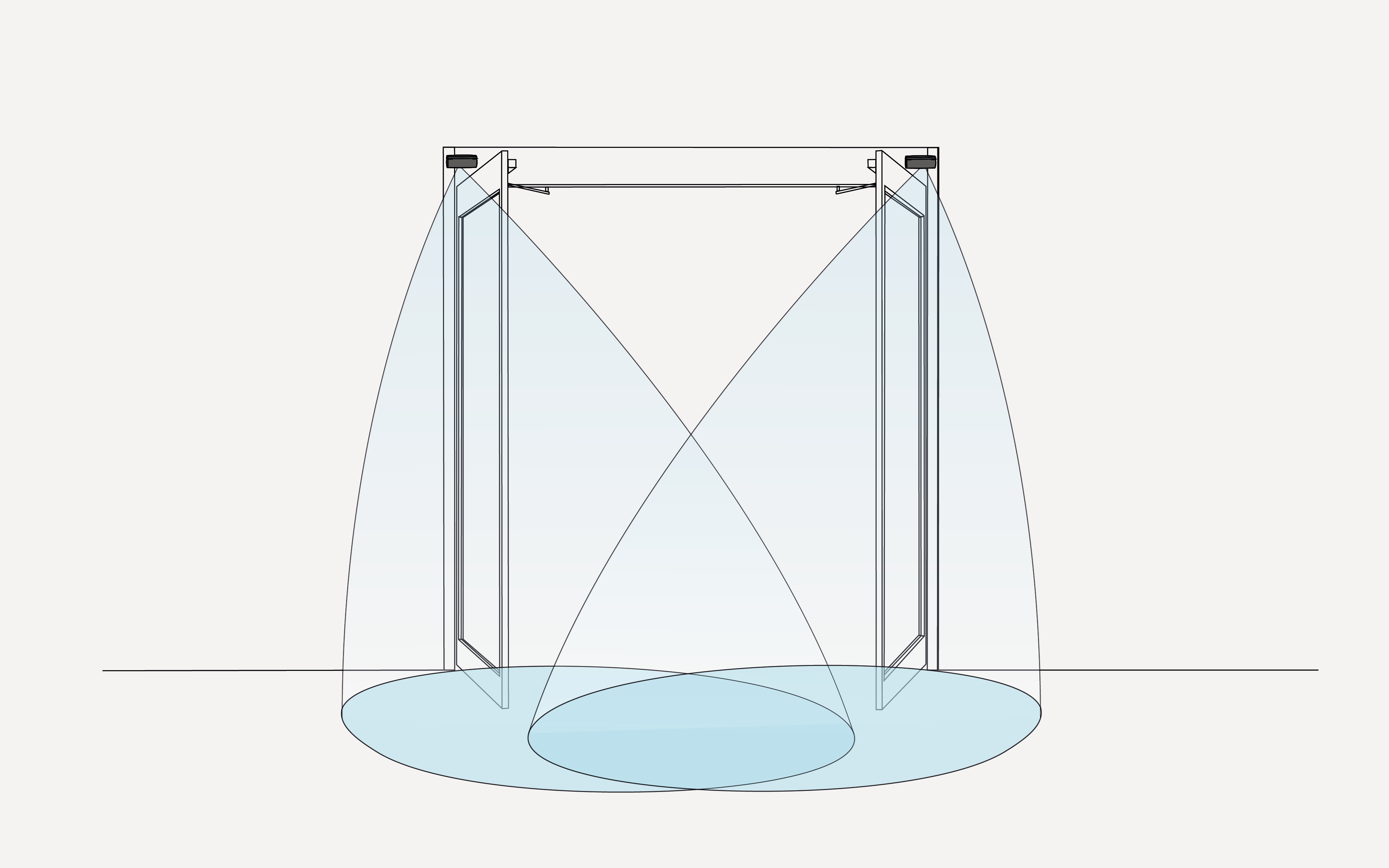

Mounting on door axis (swing doors).

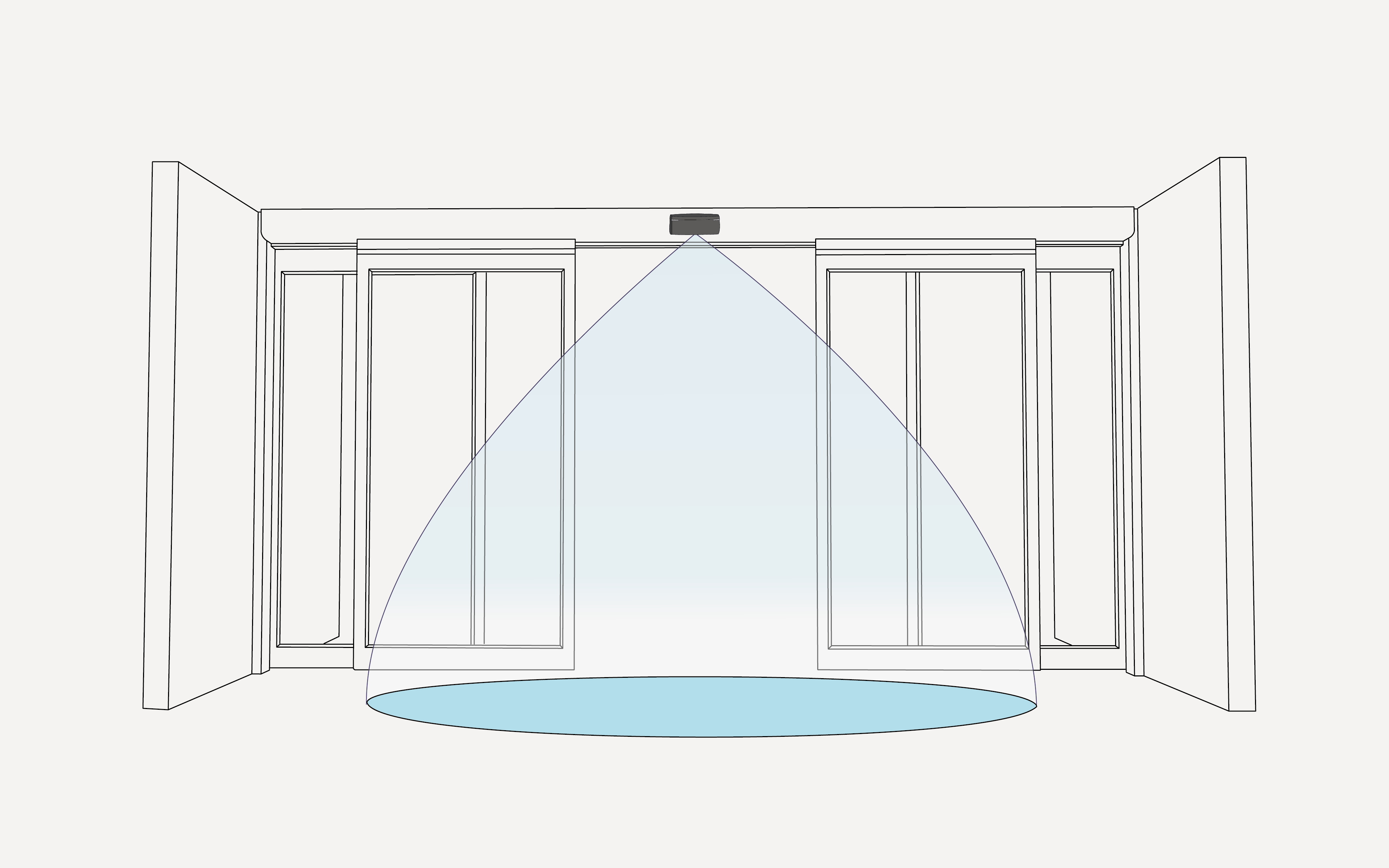

Wall mounting above sliding or revolving door.

Ceiling mounting in front of door (sliding, revolving or swing doors).

*Other use of the device outside of the permitted purpose can not be guaranteed by the manufacturer.

  • Only trained and qualified personnel may install and setup the sensor.

  • The sensor cannot be used for purposes other than its intended use.

  • The installer must read, understand and follow the instructions given in this user guide.

  • Improper installation can result in improper sensor operation.

  • Always test the good functioning of the installation before leaving the premises.

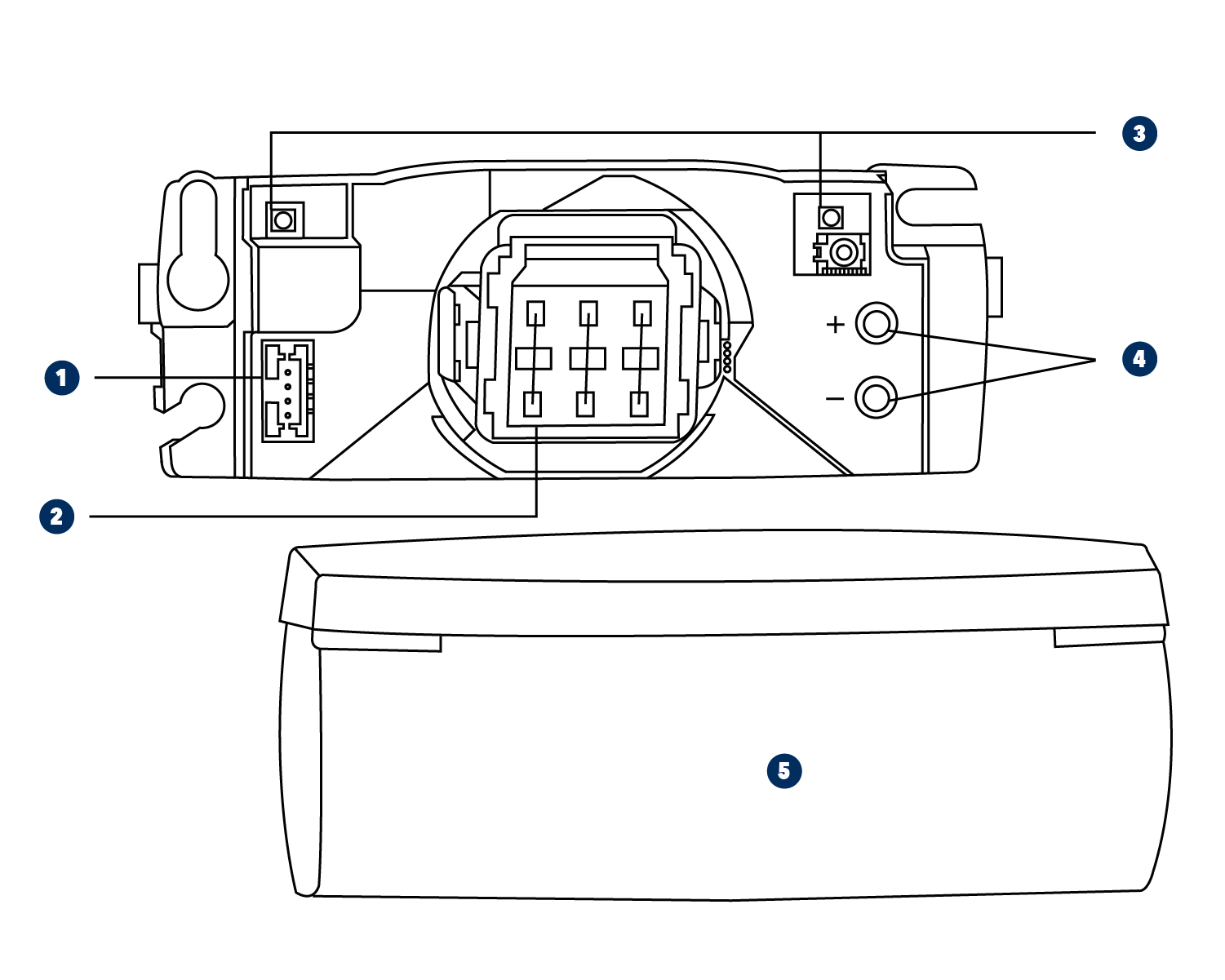

Description



Main connector


Push buttons


LEDs


Antenna


Cover

Tips


Avoid vibrations.

Do not cover the sensor.

Avoid proximity to neon lamps or moving objects.

Mounting on door

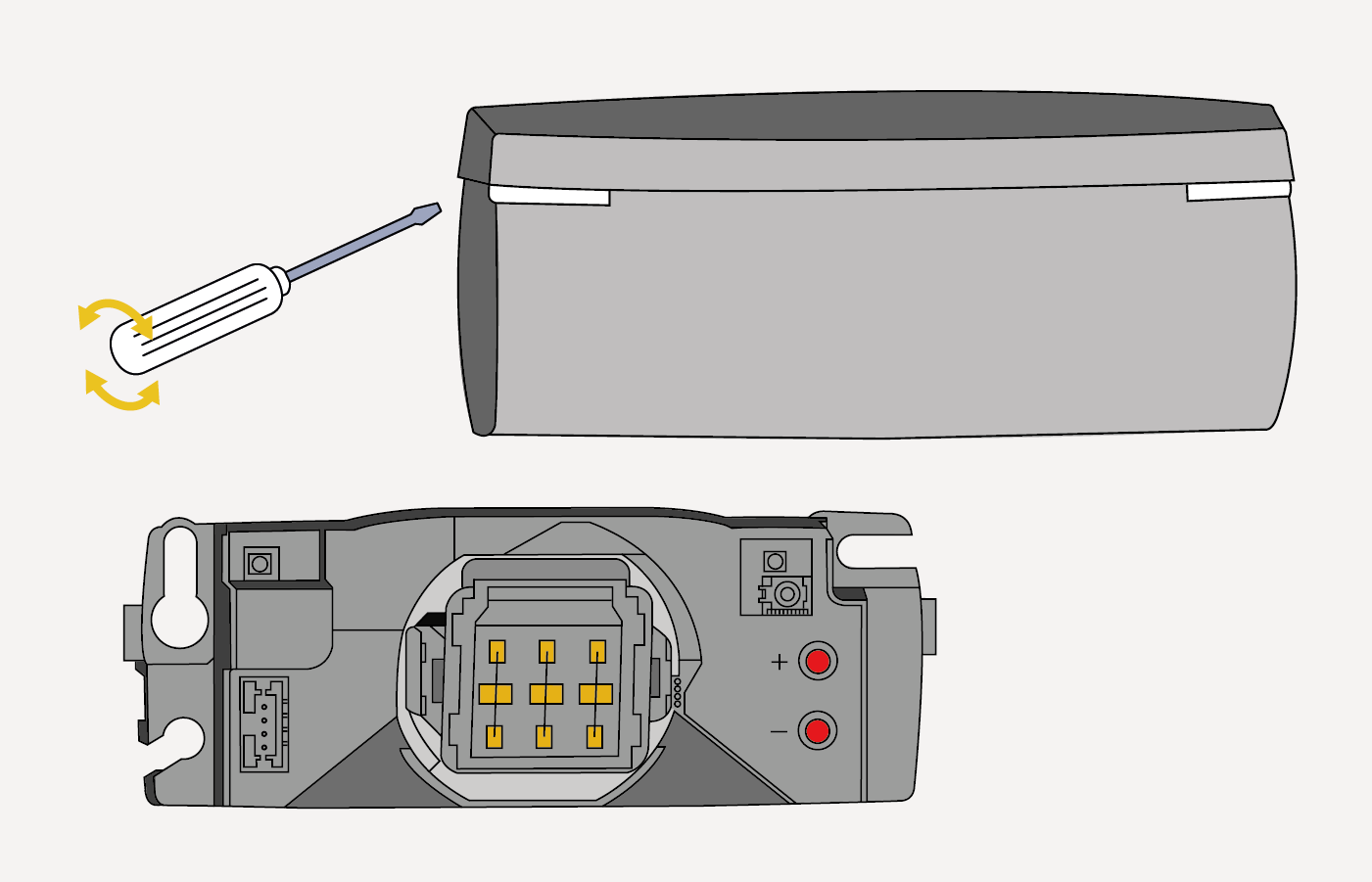

Remove the cover

Insert the screwdriver on the left or right notch of the sensor and twist it to remove the cover.


Applications

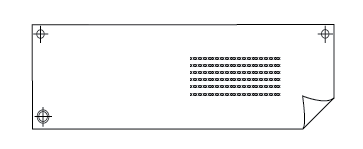

  1. Apply the mounting template. Drill 1 hole (Ø 5 - 7 mm Ø 1/4’’) for the cable and pull it through. Drill 2 holes (Ø 3 mm Ø 1/8’’) for the screws.

a Template_t.png

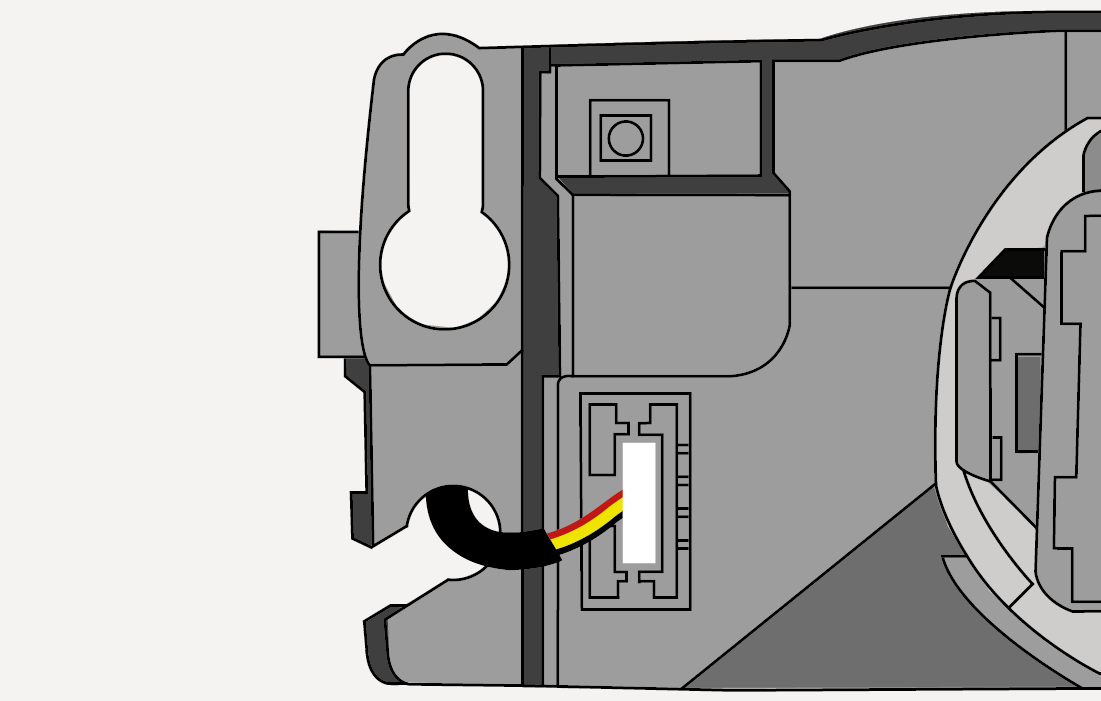

  1. Plug the connector accordingly.

  1. First, position the cable according to the hole in the wall. To avoid crushing it, you can use the dedicated cable path. Next, fix the sensor firmly.


Connecting the sensor

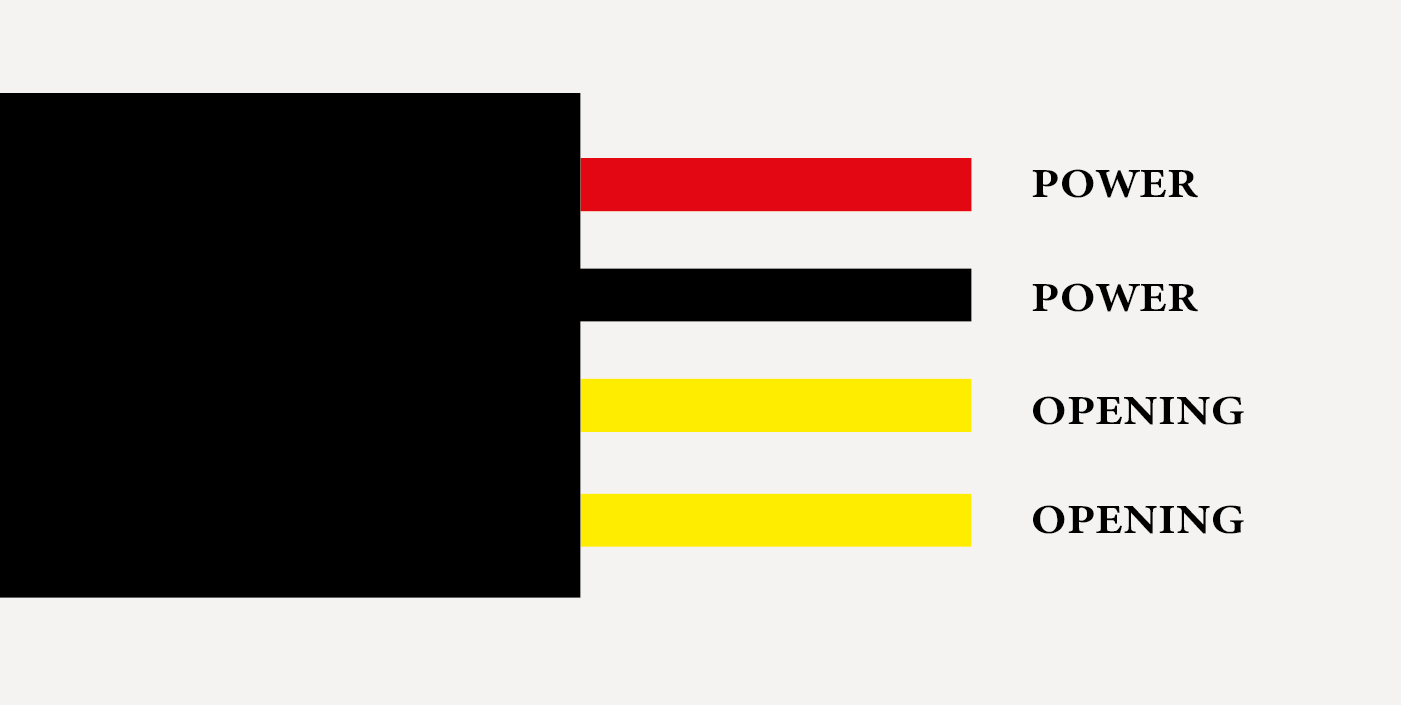

Connect to the door controller:

1. RED - POWER SUPPLY

2. BLACK - POWER SUPPLY

3. YELLOW - OPENING

4. YELLOW - OPENING

[Caution]Caution

Mount the sensor securely.


Radar opening field

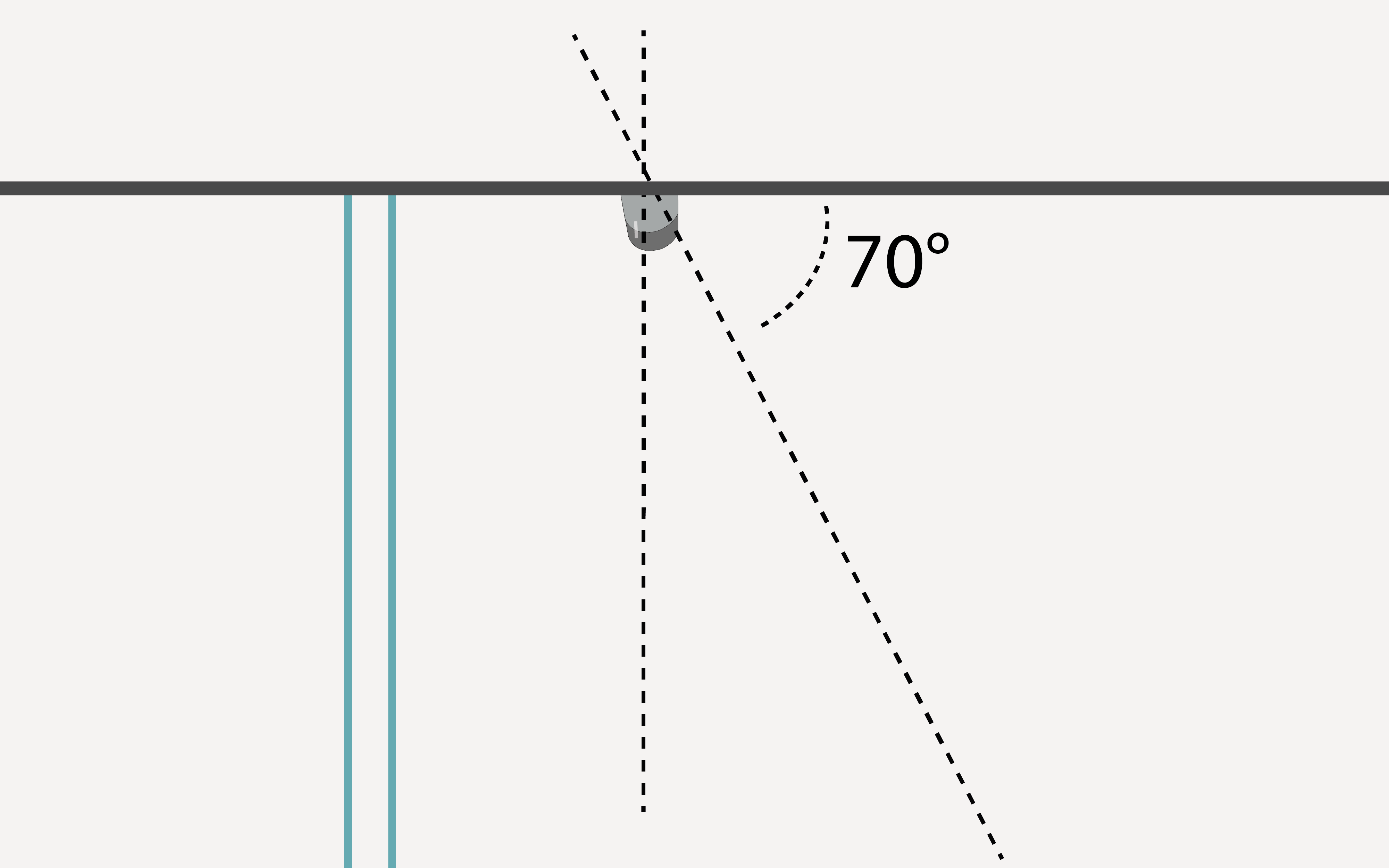

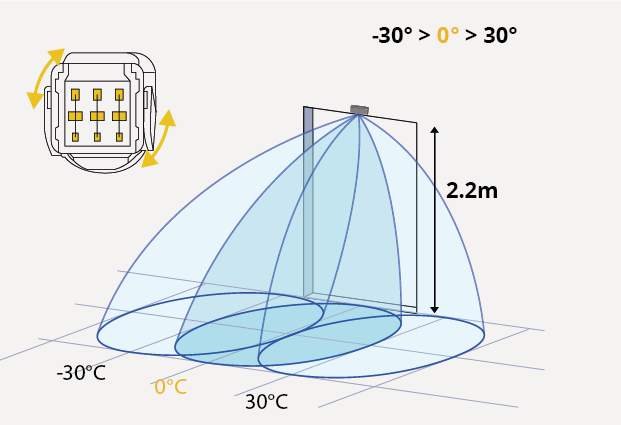

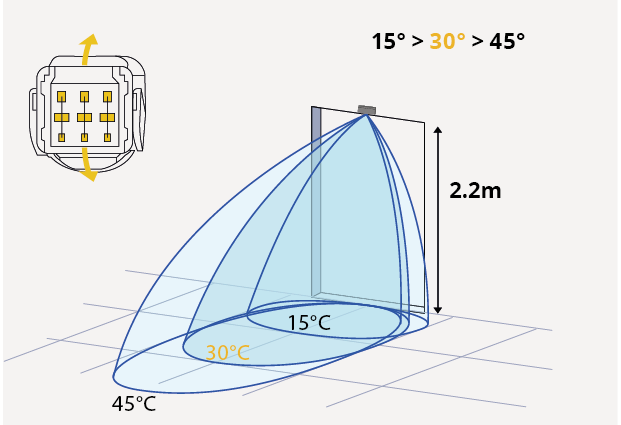

Angle

Tilt the antenna to position the radar opening field

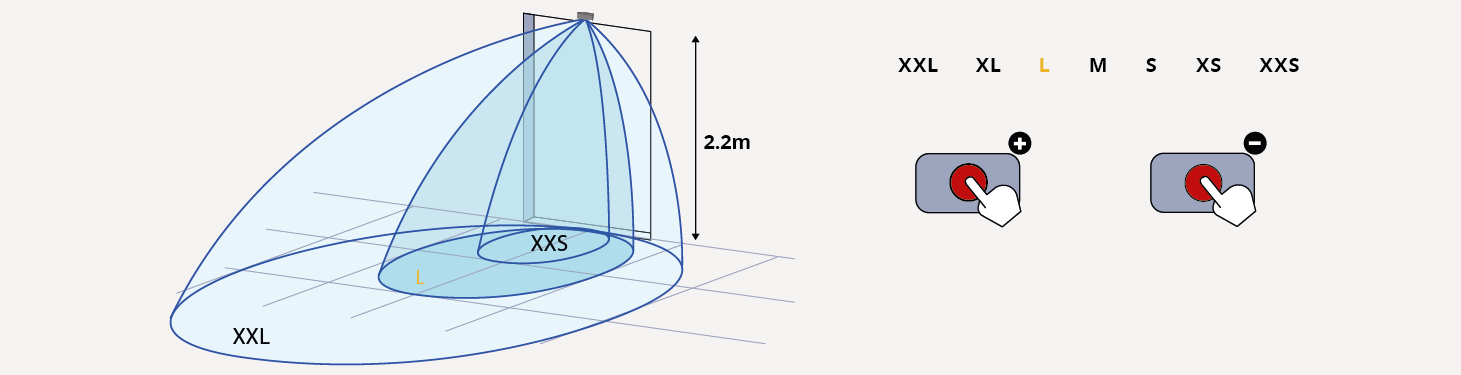

Field size

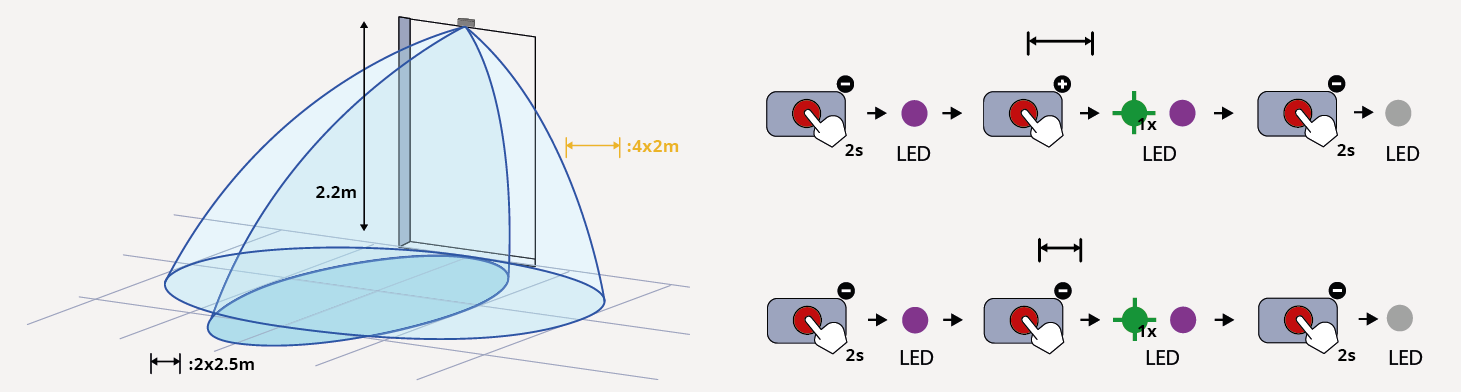

Field shape

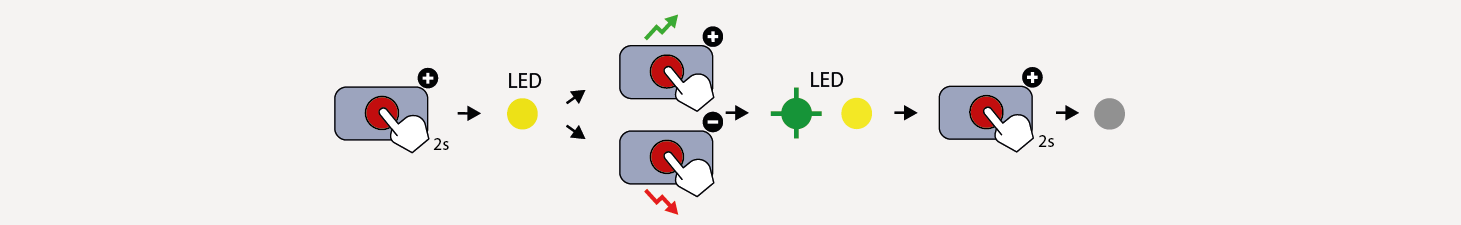

Immunity


Remote control

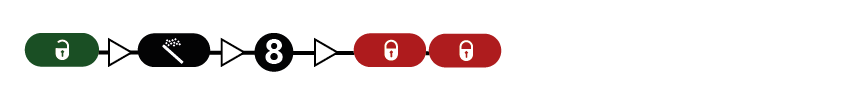

RESETTING TO FACTORY VALUES

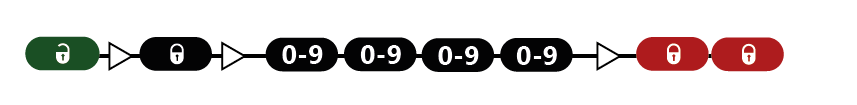

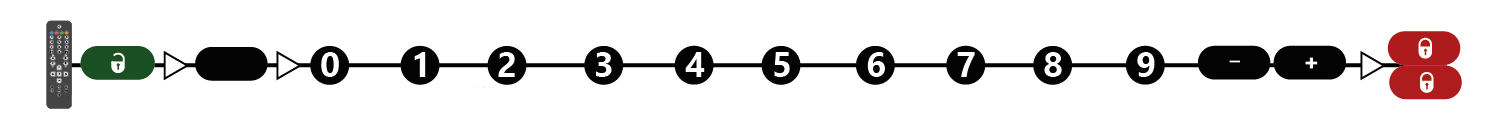

SAVING AN ACCESS CODE:

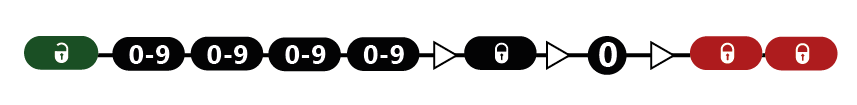

DELETING AN ACCESS CODE:


Settings

Choose one of the following presettings : Factory Values

STANDARD: standard in- and outdoor installations.


CRITICAL ENVIRONMENT: critical installations due to surroundings or weather.

OPTIMIZED CROSS-TRAFFIC REJECTION: installations with a lot of parallel pedestrian traffic (e.g. shopping street).















Std.

Crit.

Opt.


XXS

XS

S

>

>

>

>

L

XL

XXL


narrow

wide


<3m

>3m


low

normal

high

>

>

>

>

>

high-est


bi

uni

uni PRM

uni away

PRM & away

bi = two-way detection; uni = one-way detection towards sensor;

uni PRM = one-way detection also of people with reduced mobility;

uni AWAY = one-way detection away from sensor.


NO

NC


0.5s

1s

2s

3s

4s

5s

6s

7s

8s

9s


auto

open

closed

open = the sensor detects constantly. The LED is ON

closed = the sensor is in stan. The LED is ON


Presettings


Mounting hight


detection mode


Hold-open time


Field size


immunity filter


output config.


Door control

Troubleshooting

LED

Status

Explanation / Solution


The door remains closed. The LED is OFF.

The sensor power is off.

Check the wiring and the power supply.

The door control setting (F2) is set to value 3 (closed).

Change the door control setting (F2) to value 1 (automatic).


The door does not react as expected.

Improper output configuration on the sensor.

Change the output configuration setting on each sensor connected to the door operator.


The door does not react as expected.

The wire to the antenna is disconnected or damaged.

  1. Check if the wire to the antenna is crushed or cut.

  2. Replace sensor.


The door opens and closes constantly.

The sensor is disturbed by the door motion or vibrations caused by the door motion.

  1. Make sure the sensor is fixed properly.

  2. Make sure the detection mode is unidirectional.

  3. Increase the antenna angle.

  4. Increase the immunity filter.

  5. Reduce the field size.


The door opens for no apparent reason.

It rains and the sensor detects the motion of the rain drops.

  1. Make sure the detection mode is unidirectional.

  2. Increase the immunity filter.

In highly reflective environments, the sensor detects objects outside of its detection field.

  1. Change the antenna angle.

  2. Decrease the field size.

  3. Increase the immunity filter.

In airlock vestibules, the sensor detects the movement of the opposite door.

  1. Change the antenna angle.

  2. Adjust the field shape.

  3. Increase the immunity filter.


The LED flashes quickly after unlocking.

The sensor needs an access code to unlock.

  1. Enter the right access code.

  2. If you forgot the code, cut and restore the power supply to access the sensor without access code. Change or delete the access code.

The sensor does not respond to the remote control.

Batteries in the remote control are weak or installed improperly.

Check and change the batteries if necessary.

Remote control badly pointed.

Point the remote control towards the sensor.

Technical specifications

Technology

Microwave

Transmitter frequency

24.15 GHz

Transmitter radiated power

< 20 dBm EIRP

Transmitter power density

< 5 mW/cm²

Detection mode

Motion

Max. detection range

Wide : 4 m × 2m | Narrow : 2 m × 2.2 m @2.2 m high

Max. detection speed

5 cm/s

Supply voltage**

12V to 24V AC +/- 10% (50 - 60 Hz) ; 12V to 24V DC +30% / -10%

Max Power consumption

< 1 W

Output**:

Max. switching voltage

Max. switching current

Solid-state relay (free of polarity)

30V AC / 42V DC

100mA (resistive)

Mounting Height

From 1.8 m to 4 m

Degree of protection

IP54 (IEC/EN 60529)

Temperature range

From -20 °C to + 55 °C

Dimensions

120 mm (L) × 50 mm (H) × 50 mm (W)

Tilt angles

0° to 90° vertical; -30° to +30° lateral

Material

ABS

Weight

120g

Cable length

2.5m

**External electrical sources must be within specified voltages, max 100W and ensure double insulation from primary voltages.

Conformity

BEA hereby declares that this product is in compliance with European legislation, 2014/53/EU (RED) and 2011/65/EU (RoHS).

The complete declaration of conformity is available on our website.


This product should be disposed of separately from unsorted municipal waste.



WWW.BEASENSORS.COM

BEA SA | LIEGE Science Park | ALLÉE DES NOISETIERS 5 - 4031 ANGLEUR [BELGIUM] | T +32 4 361 65 65 | F +32 4 361 28 58 | info-eu@beasensors.com| WWW.BEASENSORS.COM


Manufactured by: BEA SA - LIEGE Science Park - Allée des Noisetiers 5 - 4031 Angleur - Belgium - T +32 4 3616565 - F +32 4 3612858 - info-eu@beasensors.com - www.beasensors.com

PLEASE KEEP FOR FURTHER USE - DESIGNED FOR COLOUR PRINTING

© BEA Sensors | Original Instructions | 47.1017.01 | 09.25

?
